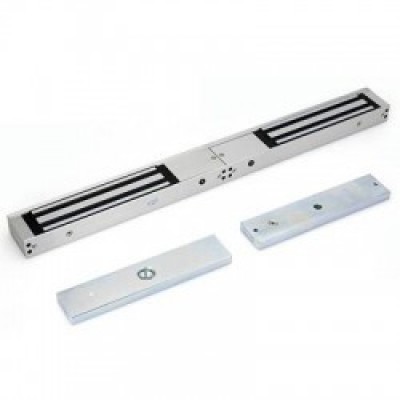

Magnetic Door Double Door Lock 280 Kg in UAE

Magnetic Double Door Lock 280 Kg

Electromagnetic Door Double Door Lock 280 Kg:

• Best Magnetic Door Lock 280KG for Double Door
• With LED, door senor
• Holding force: 280KGx2(600lbsx2)
• Voltage: DC12V and DC24V (adjustable)
• Current Draw: 12V/500mAx2 24V/240mAx2
• Lock Size: 500Lx48.5Wx25H(mm)
• Armature plate: 180x38x11mm

Specifications:

• Lock Size : 500Lx48.5Wx25H(mm)
• Armature Plate : 180Lx38Wx11H(mm)
• Holding Force : 280kgx2 (350Lbsx2)
• Voltage : DC12V or DC24V (adjustable)
• Current Draw : 12V/500mAx2 24V/250mAx2
• Signal Output : Dry Contact, Max Rating of Contact Current 3A
• Surface Temp : ≤20°C
• Operating Temp : -10℃ ~ 55℃ (14°F~131°F)
• Suitable Humidity : 0~90%(non-condensing)
• Finishes for Shell : Anodized aluminum surface texture processing
• Finishes for Magnetic : Zinc
• Finishes for Armature : Zinc
• Weight : 4kg
