BENINCA BOB50M

BENINCA BOB50M Swing Gate Motor up to 5m in Dubai, Sharjah, Ajman, Abu Dhabi UAE.

• 230 Vac Up to 5.0 m per door leaf.
• Irreversible 230 Vac electromechanical geared motor.
• Reliable, quiet, and quick to install geared motor.
• thanks to its 2 adjustable mechanical stops for opening and closing.
• Rolled ball screws Ø 20 mm.
• Easy access release from above.
• Beninca Bob50m.
•  is the ideal motor gear to install on for wrought-iron gates up to 3 m.

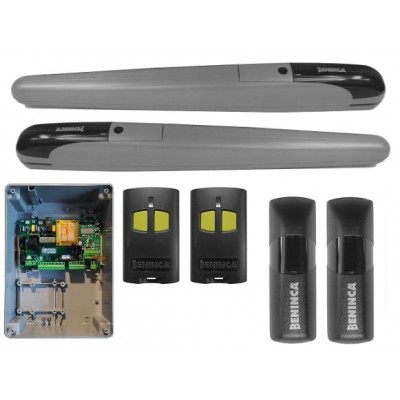

BENINCA BOB50M kits contains:

• 2 x BOB50M Swing Gate Motor.
• 1 x HEADY Control unit.
• 1 x PUPILLA.T Pair of adjustable photocells.
• 1 x LAMPY Flashing light with integrated antenna.
• 2 x To Go Remote Control.
• 1 x Push Button.
• 2 x Fixing Bracket.

Technical Data:

• Power supply : 230 Vac (50-60Hz)
• Motor supply : 230 Vac
• Max absorbed current : 1,4 A
• Maximum thrust : 2500 N
• Opening time : 26”
• Standard stroke : 455 mm
• Max stroke : 520 mm
• Duty cycle : 30%
• Protection level : IP44
• Built-in control unit : no
• Encoder : no
• Operating temperature : -20°C /+50°C
• Lubrication : GREASE
• Leaf max dimension : 3.0 m
• Weight : 11.6 kg
• Kit weight 19.6 kg
