BFT ATHOS AC A40 Swing Gate Motor in UAE

BFT ATHOS AC A40 Swing Gate Motor UAE

Automatic Swing Gate Opener for Residential & Commercial Gates

BFT ATHOS AC A40 Swing Gate Motor UAE is a premium Italy-made automatic swing gate opener designed for reliable residential, commercial, and professional automation projects across the UAE.

The BFT ATHOS AC A40 is engineered to provide smooth, controlled, and dependable daily operation for modern swing gate automation systems. It is rated for applications up to 400 kg, and a duty rating of Semi intensive.

This Bft automation system uses 230 V motor system, 280 W power rating, helping deliver stable motor control, accurate movement, and reliable performance for correctly sized gates or doors.

Key operational and safety characteristics include Electronic clutch, work time limit switches, IP54 protection. These technologies support controlled movement and dependable automation when the operator is installed and programmed according to the manufacturer's requirements.

Suitable applications include villas, residential compounds, commercial properties, office entrances, parking areas, and professional swing gate automation systems. Correct motor selection should always consider the actual gate or door weight, dimensions, mechanical condition, operating frequency, wind load, and site requirements.

Supply, professional installation, maintenance, site visit, motor recommendation, technical support, and after-sales support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

BFT ATHOS AC A40 Features

• Irreversible electromechanical operator 230 V for swing gates weighing up to 400 kg and 4 m long
• Designed for professional swing gate motor applications
• Model-specific BFT operator: BFT ATHOS AC A40
• Supports integration with compatible photocells, remote controls and access-control accessories
• Manual release capability for emergency or power-failure operation
• Suitable for professional residential and commercial automation projects

BFT ATHOS AC A40 Technical Specifications

• Gate Leaf: 4 Meter
• Country of Origin: Italy
• Product Code: P935115 00002
• Motor Voltage: 230 V
• Maximum Gate Weight: 400 kg
• Board Power Supply: 230 V
• Power Consumption: 280 W
• Max. width of door/gate wing: 4 m
• Max. weight of door/gate wing: 400 kg
• Useful rod stroke: 400 mm
• Maximum angle: 110 °
• Cycle time: 16 s
• Limit Switch Type: work time
• Slowdown Function: Yes
• Locking System: Mechanical
• Manual Release: Triangle key
• Impact Reaction: Electronic clutch
• Frequency of Use: Semi intensive
• Protection Rating: IP54
• Operating Temperature: -20 ÷ 55 °C
• Interconnectivity: no

Technical suitability can vary by gate size, weight, geometry, duty cycle, accessories and site conditions. Confirm the exact configuration before installation.

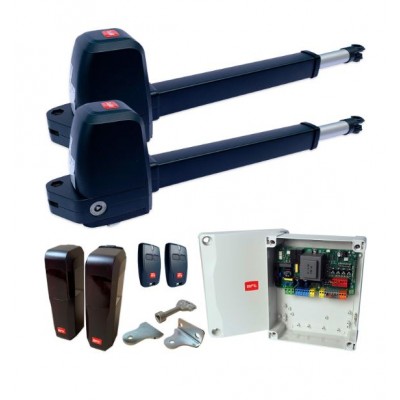

BFT ATHOS AC A40 Kit Includes

• 1 x ALENA SW2 Control Board
• 1 x Pair of self-aligning photocells. Range 30 m
• 1 x Flashing light with incorporated antenna
• 2 x Remote Controls Range 50/100 m
• 1 x Push button
• 2 x Fixing Bracket

Applications

• Residential swing gates
• Villa gate automation
• Commercial swing gates
• Residential compounds
• Office and building entrances
• Automatic driveway gates
• Parking entrance automation
• Automatic swing gate systems

Why Choose BFT ATHOS AC A40 UAE?

BFT ATHOS AC A40 offers a model-specific automation option for UAE projects. Its available technical specifications, operating characteristics and compatible accessories help installers and property owners select a solution that matches the actual gate or garage-door requirement. Correct sizing, professional installation and suitable safety devices support reliable operation and long service life.

Installation & Compatibility

Professional installation is recommended. Confirm the power supply, motor capacity, control-board configuration, gate or door mechanics and all required safety devices before commissioning. Compatibility with remote controls, photocells, loop detectors, WiFi/GSM controllers, keypads and other access-control accessories depends on the selected model and control system.

Frequently Asked Questions

What are the main specifications of BFT ATHOS AC A40?

The key model-specific specifications available in the original product data are listed above, including capacity, voltage, power, speed, control and safety information where provided.

What is included with BFT ATHOS AC A40?

The kit includes: 1 x ALENA SW2 Control Board; 1 x Pair of self-aligning photocells. Range 30 m; 1 x Flashing light with incorporated antenna; 2 x Remote Controls Range 50/100 m; 1 x Push button; 2 x Fixing Bracket.

Is BFT ATHOS AC A40 suitable for residential use?

It may be suitable when the gate or door weight, dimensions, operating frequency and installation conditions are within the manufacturer's stated limits.

Can BFT ATHOS AC A40 be used for commercial applications?

Commercial suitability depends on the rated capacity, duty cycle and actual site conditions. High-use entrances should be assessed before motor selection.

Can remote, WiFi, GSM or access-control systems be added?

Compatible automation accessories can often be integrated depending on the control board, receiver and system configuration.
