BFT Underground Swing Gate Motor in Dubai UAE
BFT ELI AC A40 Swing Gate Motor UAE
Automatic Swing Gate Opener for Residential & Commercial Gates
BFT ELI AC A40 Swing Gate Motor UAE is a premium automatic swing gate opener designed for reliable residential, commercial, and professional automation projects across the UAE.
The BFT ELI AC A40 is engineered to provide smooth, controlled, and dependable daily operation for modern swing gate automation systems. It is with an operating speed of 1.45 Rpm, and a duty rating of 20.
This Bft automation system uses 230 V motor system, RIGEL6, ALENA SW2 control technology, helping deliver stable motor control, accurate movement, and reliable performance for correctly sized gates or doors.
Key operational and safety characteristics include Electronic clutch (with control panel), N/A limit switches, IP67 protection. These technologies support controlled movement and dependable automation when the operator is installed and programmed according to the manufacturer's requirements.
Suitable applications include villas, residential compounds, commercial properties, office entrances, parking areas, and professional swing gate automation systems. Correct motor selection should always consider the actual gate or door weight, dimensions, mechanical condition, operating frequency, wind load, and site requirements.
Supply, professional installation, maintenance, site visit, motor recommendation, technical support, and after-sales support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
BFT ELI AC A40 Features
- Underground electromechanical operator 230V for swing gates up to 4 m in length
- Designed for professional swing gate motor applications
- Model-specific BFT operator: ELI AC A40
- Supports integration with compatible photocells, remote controls and access-control accessories
- Manual release capability for emergency or power-failure operation
- Suitable for professional residential and commercial automation projects
BFT ELI AC A40 Technical Specifications
- Product Code: P930132 00002
- Super fast AC35 motors: Maximum comfort. Fast opening is ideal for sites which require
- Manual Release: Lever or lever with personalised key
- Protection Rating: IP67
- Operating Temperature: -20 ÷ 55 °C
- Interconnectivity: no
- Motor Voltage: 230 V
- Max. width of door/gate wing: 4 m
- Maximum angle: 120 °
- Impact Reaction: Electronic clutch (with control panel)
- Compatible control unit: RIGEL6, ALENA SW2
- Max. length gate panel without electric lock: 2.5 m
- Max. motor torque: 350 Nm
- Max. opening cycles per hour: 20
- Speed: 1.45 Rpm
- Opening time to 90°: 13" (no slowdown)
- Limit switch standard: N/A
- Limit switch optional: Magnetic
- Mechanical stops: OP+CL
Technical suitability can vary by gate size, weight, geometry, duty cycle, accessories and site conditions. Confirm the exact configuration before installation.

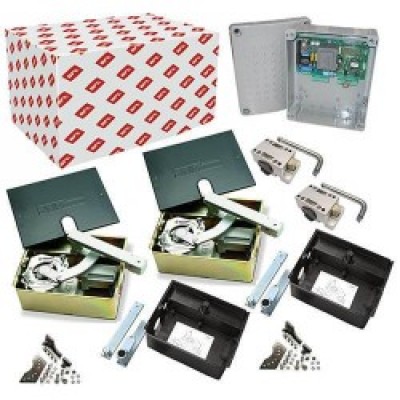

BFT ELI AC A40 Kit Includes
- 2 x BFT ELI AC A40 Underground Swing Gate Motor
- 1 x Control Board
- 1 x Pair of self-aligning photocells. Range 30 m
- 1 x Flashing light with incorporated antenna
- 2 x Remote Control Range 50/100 m
- 1 x Push button
- 2 x Fixing Brackets
- 2 x Wall Brackets
Applications
- Residential swing gates
- Villa gate automation
- Commercial swing gates
- Residential compounds
- Office and building entrances
- Automatic driveway gates
- Parking entrance automation
- Automatic swing gate systems
Why Choose BFT ELI AC A40 UAE?
BFT ELI AC A40 offers a model-specific automation option for UAE projects. Its available technical specifications, operating characteristics and compatible accessories help installers and property owners select a solution that matches the actual gate or garage-door requirement. Correct sizing, professional installation and suitable safety devices support reliable operation and long service life.
Installation & Compatibility
Professional installation is recommended. Confirm the power supply, motor capacity, control-board configuration, gate or door mechanics and all required safety devices before commissioning. Compatibility with remote controls, photocells, loop detectors, WiFi/GSM controllers, keypads and other access-control accessories depends on the selected model and control system.
Frequently Asked Questions
What are the main specifications of BFT ELI AC A40?
The key model-specific specifications available in the original product data are listed above, including capacity, voltage, power, speed, control and safety information where provided.
What is included with BFT ELI AC A40?
The kit includes: 2 x BFT ELI AC A40 Underground Swing Gate Motor; 1 x Control Board; 1 x Pair of self-aligning photocells. Range 30 m; 1 x Flashing light with incorporated antenna; 2 x Remote Control Range 50/100 m; 1 x Push button; 2 x Fixing Brackets; 2 x Wall Brackets.
Is BFT ELI AC A40 suitable for residential use?
It may be suitable when the gate or door weight, dimensions, operating frequency and installation conditions are within the manufacturer's stated limits.
Can BFT ELI AC A40 be used for commercial applications?
Commercial suitability depends on the rated capacity, duty cycle and actual site conditions. High-use entrances should be assessed before motor selection.
Can remote, WiFi, GSM or access-control systems be added?
Compatible automation accessories can often be integrated depending on the control board, receiver and system configuration.
