BFT PHOBOS BT B40 Swing Gate Motor in UAE

BFT PHOBOS BT B40 Swing Gate Motor UAE

Automatic Swing Gate Opener for Residential & Commercial Gates

BFT PHOBOS BT B40 Swing Gate Motor UAE is a premium automatic swing gate opener designed for reliable residential, commercial, and professional automation projects across the UAE.

The BFT PHOBOS BT B40 is engineered to provide smooth, controlled, and dependable daily operation for modern swing gate automation systems. It is and a duty rating of 30.

This Bft automation system uses 24 V motor system, THALIA BT A80. ZARA BT A80 control technology, 40 W power rating, helping deliver stable motor control, accurate movement, and reliable performance for correctly sized gates or doors.

Key operational and safety characteristics include D-Track, Magnetic limit switches, IP44 protection. These technologies support controlled movement and dependable automation when the operator is installed and programmed according to the manufacturer's requirements.

Suitable applications include villas, residential compounds, commercial properties, office entrances, parking areas, and professional swing gate automation systems. Correct motor selection should always consider the actual gate or door weight, dimensions, mechanical condition, operating frequency, wind load, and site requirements.

Supply, professional installation, maintenance, site visit, motor recommendation, technical support, and after-sales support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

BFT PHOBOS BT B40 Features

• Irreversible electromechanical operator 24 V
• The 24 V technology and electronic control help to keep people safe
• from impacts without a need for supplementary safety devices
• Designed for professional swing gate motor applications
• Model-specific BFT operator: BFT PHOBOS BT B40
• Supports integration with compatible photocells, remote controls and access-control accessories
• Manual release capability for emergency or power-failure operation
• Suitable for professional residential and commercial automation projects

BFT PHOBOS BT B40 Technical Specifications

• Motor Voltage: 24 V
• Control Unit: THALIA BT A80. ZARA BT A80
• Protection Rating: IP44
• Slowdown Function: Yes
• Power Consumption: 40 W
• Operator type: electromechanically operated swing gates
• Interconnectivity: no
• Impact Reaction: D-Track
• Thrust and traction force: 2000 N
• Operator weight: 5.2 kg
• Locking System: Mechanical
• Useful rod stroke: 470 mm
• Max. width of door/gate wing: 4 m
• Manual Release: Personal key
• Maximum angle: 130 °
• Max. length gate panel without electric lock: 3 m
• Max. opening cycles per hour: 30
• Movement time: (90°, excluding slowdown,
• with maximum gate size and weight): approx.. 16 s
• Max. weight of door/gate wing: 700 kg
• Board Power Supply: 230 V
• Operating Temperature: -20 ÷ 55 °C
• Limit Switch Type: Magnetic

Technical suitability can vary by gate size, weight, geometry, duty cycle, accessories and site conditions. Confirm the exact configuration before installation.

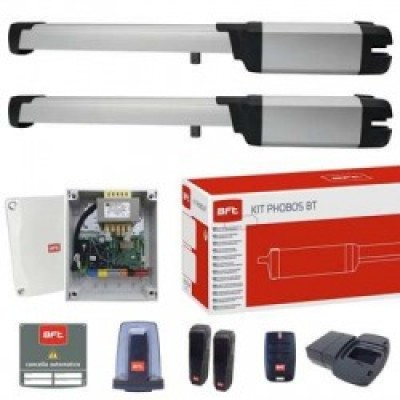

BFT PHOBOS BT B40 Kit Includes

• 2 x BFT PHOBOS BT B40 Swing Gate Operators
• 1 x BFT Control Unit
• 2 x BFT Remote Controls
• 1 x BFT Pair of Outdoor Photocells
• 1 x Radio Receiver (where not integrated)
• 1 x BFT Flashing / Blinker Light
• 1 x Fixing Bracket Set
• 1 x Push Button

Applications

• Residential swing gates
• Villa gate automation
• Commercial swing gates
• Residential compounds
• Office and building entrances
• Automatic driveway gates
• Parking entrance automation
• Automatic swing gate systems

Why Choose BFT PHOBOS BT B40 UAE?

BFT PHOBOS BT B40 offers a model-specific automation option for UAE projects. Its available technical specifications, operating characteristics and compatible accessories help installers and property owners select a solution that matches the actual gate or garage-door requirement. Correct sizing, professional installation and suitable safety devices support reliable operation and long service life.

Installation & Compatibility

Professional installation is recommended. Confirm the power supply, motor capacity, control-board configuration, gate or door mechanics and all required safety devices before commissioning. Compatibility with remote controls, photocells, loop detectors, WiFi/GSM controllers, keypads and other access-control accessories depends on the selected model and control system.

Frequently Asked Questions

What are the main specifications of BFT PHOBOS BT B40?

The key model-specific specifications available in the original product data are listed above, including capacity, voltage, power, speed, control and safety information where provided.

What is included with BFT PHOBOS BT B40?

The kit includes: 2 x BFT PHOBOS BT B40 Swing Gate Operators; 1 x BFT Control Unit; 2 x BFT Remote Controls; 1 x BFT Pair of Outdoor Photocells; 1 x Radio Receiver (where not integrated); 1 x BFT Flashing / Blinker Light; 1 x Fixing Bracket Set; 1 x Push Button.

Is BFT PHOBOS BT B40 suitable for residential use?

It may be suitable when the gate or door weight, dimensions, operating frequency and installation conditions are within the manufacturer's stated limits.

Can BFT PHOBOS BT B40 be used for commercial applications?

Commercial suitability depends on the rated capacity, duty cycle and actual site conditions. High-use entrances should be assessed before motor selection.

Can remote, WiFi, GSM or access-control systems be added?

Compatible automation accessories can often be integrated depending on the control board, receiver and system configuration.
