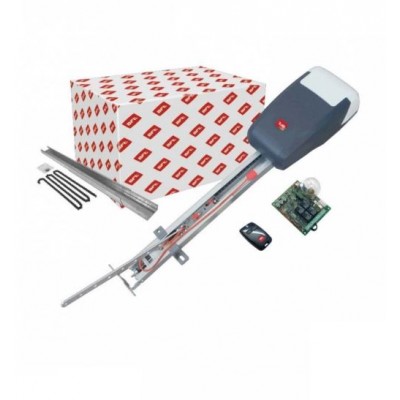

BFT TIZIANO B GDA 260 S01

BFT TIZIANO B GDA 260 S01 Garage Door Motor in Dubai, Sharjah, Ajman, Abu Dhabi UAE.

• Product code P915199 00002
• Operator for sectional garage doors with tractive force 60 kg
• and Semi intensive use. Door surface area 10 m². Opening speed 6.6 m/min.

Main features:

• Anti-break-in blocking system: The exclusive rail-carriage system
• allows the door to be locked in the closed position even after emergency manual closing.
• Encoder limit switches: Encoder and D-Track combined in a single operator.
• The technological level and reliability of the system have made it
• possible to do away with external stops while
• still guaranteeing maximum door stopping and positioning precision.

Technical data sheets:

• Control unit : VENERE B GDA
• Nominal voltage : 24 V
• Power consumption : 100 W
• Max. door/gate weight : 60 kg
• Door surface area : 10 m²
• Gate panel speed : 6.6 m/min
• Type of limit switch : encoder
• Slowdown : Yes
• Locking : Mechanical
• Release : Steel cord or cable
• Impact reaction : D-Track
• Frequency of use : Semi intensive
• Protection rating : IPX0
• Environmental conditions : -20 ÷ 60 °C
• Interconnectivity : no.
