FAAC Sliding Gate Motor Supplier in UAE

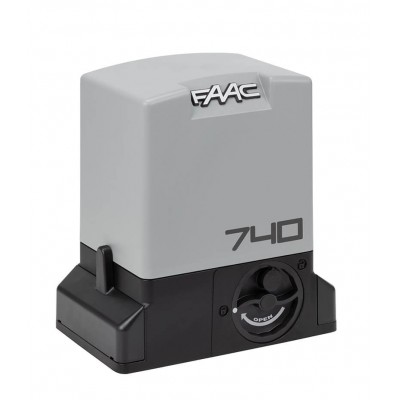

FAAC 740 500 Kg Sliding Gate Motor in Dubai, Sharjah, Abu Dhabi, Ajman UAE.

• 740 230V Gearmotor.
• Max. leaf weight 500 Kg.
• Max speed 12 m/min.
• Use frequency 30%.
• Easy programming thanks to the display and the prewired control unit
• Magnetic limit switch.
• Integrated encoder with reverse function upon obstacle detection and specific management in opening and slow down.

Dimensions and technical specifications.

• Power supply voltage: 220-240V~ 50/60 Hz
• Electric motor: Asynchronous single-phase
• Max. power: 350 W
• Max. torque: 18 Nm (*)
• Max expressed force: 450 N (*)
• Reduction ratio: 1:25
• Max. leaf width: 15 m
• Leaf speed: 12 m/min :
• Speed adjustment and motor control: No
• Limit switch: Magnetic
• Pinion : Z16 module 4
• Encoder: Optical encoder
• Force adjustment: Via electronic control board
• Operating ambient temperature : -20°C ÷ +55°C
• Thermal protection: 140°C
• Protection class: IP44
• Weight: 10 kg
• Dimensions (LxDxH) : 295 x 181 x 320 mm
• Max. leaf weight: 500 Kg
• Use frequency : S3 – 30%
• Electronic equipment
• 740D incorporated.

Kit Includes:

• 1 x 740 E Z16 Gearmotor with electronic control unit and integrated encoders.
• 4 x Nylon Rack 1 meter.
• 1 x Plug-in receiver 1 channel RP 433 SLH.
• 1 x XLED flashing light.
• 1 x Lock with key.
• 1 x Pair of photocells XP 20D.
• 1 x 2 channels transmitter XT2 433 SLH LR.
• 1 x Push button.
