KEY RAY40 600KG Swing Gate Motor in UAE

KEY RAY40 600KG Swing Gate Motor UAE

Automatic Swing Gate Opener for Residential & Commercial Gates

KEY RAY40 600KG Swing Gate Motor UAE is a premium automatic swing gate opener designed for reliable residential, commercial, and professional automation projects across the UAE.

The KEY RAY40 600KG is engineered to provide smooth, controlled, and dependable daily operation for modern swing gate automation systems. It is with an operating speed of 1,6 cm/s, and a duty rating of 40.

This Key automation system uses CT202 control technology, helping deliver stable motor control, accurate movement, and reliable performance for correctly sized gates or doors.

Suitable applications include villas, residential compounds, commercial properties, office entrances, parking areas, and professional swing gate automation systems. Correct motor selection should always consider the actual gate or door weight, dimensions, mechanical condition, operating frequency, wind load, and site requirements.

Supply, professional installation, maintenance, site visit, motor recommendation, technical support, and after-sales support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

KEY RAY40 600KG Features

• Rated application capacity: 600 KG
• Key Ray Swing Gate Motor 4m 600 kg in Dubai, Sharjah, Ajman, Abu Dhabi UAE. RAY40 Gearmotor for swing gates up to 4 m, 230 Vac
• Designed for professional swing gate motor applications
• Model-specific KEY operator: KEY RAY40
• Supports integration with compatible photocells, remote controls and access-control accessories
• Manual release capability for emergency or power-failure operation
• Suitable for professional residential and commercial automation projects

KEY RAY40 600KG Technical Specifications

• Product Code: 900RAY40
• Speed: 1,6 cm/s
• Control Unit: CT202
• Nominal power: 280 W
• Max leaf weight: 600 kg
• KEY RAY40 Includes: 1 x RAY40 Gearmotor for swing gates up to 4 m, 230 Vac
• Technical Features: Speed cm/s : 1,6
• 90° Opening time s: 20-25
• Force N: 2000
• Duty cycle percentage %: 40
• Voltage Vac: 230
• AC Voltage frequency Hz: 50/60
• Nominal current A: 1,2
• Nominal power W: 280
• Capacitor µF: 8
• Thermal protection °C: 150
• Appliance isolation class: I
• Degree of protection IP: 44
• Dimensions (L - D - H) mm: 844 - 100 - 104
• Item kg: 10,2
• Min operating temperature °C: -20
• Max operating temperature °C: +55
• Max leaf weight kg: 600
• Max leaf length m: 4

Technical suitability can vary by gate size, weight, geometry, duty cycle, accessories and site conditions. Confirm the exact configuration before installation.

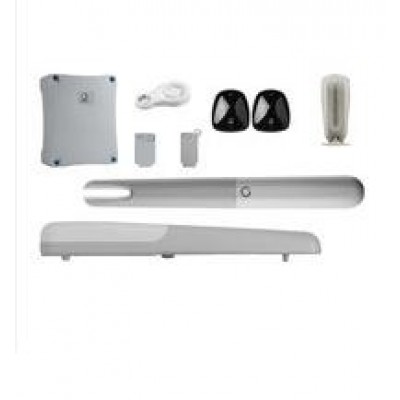

KEY RAY40 600KG Kit Includes

• 2 x KEY RAY40 Swing Gate Operators
• 1 x KEY Control Unit
• 2 x KEY Remote Controls
• 1 x KEY Pair of Outdoor Photocells
• 1 x Radio Receiver (where not integrated)
• 1 x KEY Flashing / Blinker Light
• 1 x Fixing Bracket Set
• 1 x Push Button

Applications

• Residential swing gates
• Villa gate automation
• Commercial swing gates
• Residential compounds
• Office and building entrances
• Automatic driveway gates
• Parking entrance automation
• Automatic swing gate systems

Why Choose KEY RAY40 600KG UAE?

KEY RAY40 600KG offers a model-specific automation option for UAE projects. Its available technical specifications, operating characteristics and compatible accessories help installers and property owners select a solution that matches the actual gate or garage-door requirement. Correct sizing, professional installation and suitable safety devices support reliable operation and long service life.

Installation & Compatibility

Professional installation is recommended. Confirm the power supply, motor capacity, control-board configuration, gate or door mechanics and all required safety devices before commissioning. Compatibility with remote controls, photocells, loop detectors, WiFi/GSM controllers, keypads and other access-control accessories depends on the selected model and control system.

Frequently Asked Questions

What are the main specifications of KEY RAY40 600KG?

The key model-specific specifications available in the original product data are listed above, including capacity, voltage, power, speed, control and safety information where provided.

What is included with KEY RAY40 600KG?

The kit includes: 2 x KEY RAY40 Swing Gate Operators; 1 x KEY Control Unit; 2 x KEY Remote Controls; 1 x KEY Pair of Outdoor Photocells; 1 x Radio Receiver (where not integrated); 1 x KEY Flashing / Blinker Light; 1 x Fixing Bracket Set; 1 x Push Button.

Is KEY RAY40 600KG suitable for residential use?

It may be suitable when the gate or door weight, dimensions, operating frequency and installation conditions are within the manufacturer's stated limits.

Can KEY RAY40 600KG be used for commercial applications?

Commercial suitability depends on the rated capacity, duty cycle and actual site conditions. High-use entrances should be assessed before motor selection.

Can remote, WiFi, GSM or access-control systems be added?

Compatible automation accessories can often be integrated depending on the control board, receiver and system configuration.
