ROGER Sliding Gate Motor Supplier in UAE

ROGER G30/1804 Sliding Gate Motor in UAE

• G30/1804
• Electromechanical motor 230V AC irreversible ideal
• for sliding gates up to 1800 kg with built-in control unit H70.
• optical encoder and magnetic limit switch.
• Optical encoder.
• Magnetic limit switch.
• 230V AC.

Technical features:

• Max gate weight : 1800 kg
• Power line supply : 230V AC - 50Hz
• Motor power supply:    230V AC
• Power rating : 520W
• Frequency of use : 50%
• Thrust : 1200N
• Operating temperature : -20+55°C
• Protection level : IP44
• Reductor Type : Irreversible
• Manoeuvre speed : 9.5 m/min (0.16 m/s)
• Motor thermal protection : 150°C
• Incorporated condenser : 18 µF
• Limit switch : Magnetic
• Onboard control unit : H70/104AC
• Encoder : Optical
• Type exit gear : Z17/mod 4
• Maximum dimension product in mm (L x W x H) : 346 x 180 x 362
• Product weight packed (Kg) : 19,5

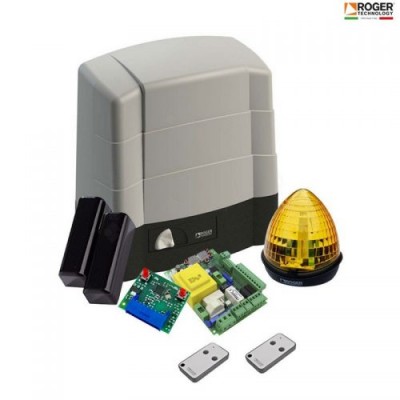

ROGER G30 Kit Contains:

• 1 x ROGER G30 1800 Kg Sliding Gate Motor.
• 2 x ROGER E80 Remote Control.
• 1 x ROGER R90 Photocell Sensors.
• 1 x ROGER Blinker Light.
• 4 x Nylon Rack 1m.
• 1 x Push button.
