CAME Sliding Gate Motor Supplier in UAE

CAME 400 KG Sliding Gate Motor Supplier in Dubai, Sharjah, Abu Dhabi UAE.

• Up to 400 kg
• Solution for sliding gates at private homes
• Encoder-based movement control.
• Complies with the rules on impact forces.
• Set up for operation in case of power outage.
• Self-diagnosing, hardwired safety devices.
• Control board with terminal blocks, dip switches and storage for up to 25 users.
• On-board rolling code decoding.
• A single version, with encoder-based control, for gates weighing 400 kg and measuring up to 10 m.
• Safety is ensured by the encoder's movement control function.

Specifications for CAME BX-64:

• Limits of use : up to 400kg or up to 14m
• Protection class : IP 54
• Power supply, V: ~ 230 ( 50/60 Hz)
• Motor power supply, V: ~ 230 ( 50/60 Hz)
• Maximum current consumption: 2.6 A
• Maximum power: 200W
• Rotation speed (rpm): 15
• Usage intensity: 30%
• Torque: 300Nm
• Operating temperature range, ° С: -20 +55
• Maximum engine temperature: 150 °C

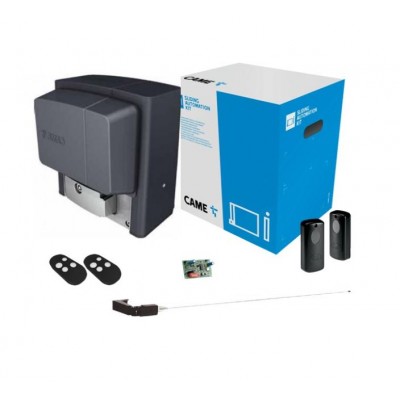

What’s Included:

• 1 x Came BX 400 Kg Motor with electromechanical limit switch.
• 1 x Integrated control unit.
• 2 x Remote control.
• 1 x Pair of Photocells.
• 1 x Remote receiver.
• 1 x Blinker Light
• 1 x 4m Nylon Rack.
• 1 x Push button.
