SOMFY IXENGO 3M 250KG Swing Gate Motor in UAE

SOMFY IXENGO 3M 250KG Swing Gate Motor UAE

Automatic Swing Gate Opener for Residential & Commercial Gates

SOMFY IXENGO 3M 250KG Swing Gate Motor UAE is a premium automatic swing gate opener designed for reliable residential, commercial, and professional automation projects across the UAE.

The SOMFY IXENGO 3M 250KG is engineered to provide smooth, controlled, and dependable daily operation for modern swing gate automation systems. It is with an operating speed of 7 to 19 seconds.

This Somfy automation system uses 230V/230V motor system, 230V/230V power rating, helping deliver stable motor control, accurate movement, and reliable performance for correctly sized gates or doors.

Suitable applications include villas, residential compounds, commercial properties, office entrances, parking areas, and professional swing gate automation systems. Correct motor selection should always consider the actual gate or door weight, dimensions, mechanical condition, operating frequency, wind load, and site requirements.

Supply, professional installation, maintenance, site visit, motor recommendation, technical support, and after-sales support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

SOMFY IXENGO 3M 250KG Features

• Rated application capacity: 250 KG
• 2 Keytis RTS 2-channel remote controls, lamp, photocell set
• set for swing gates o 250 kg weight per gate leaf (1216546)
• Designed for professional swing gate motor applications
• Model-specific SOMFY operator: SOMFY IXENGO JS 230V
• Supports integration with compatible photocells, remote controls and access-control accessories
• Manual release capability for emergency or power-failure operation
• Suitable for professional residential and commercial automation projects

SOMFY IXENGO 3M 250KG Technical Specifications

• Opening time up to 90°: 7-19s
• Power supply/motor power supply: 230V/230V
• Special application for installation: Fix & Go
• Technical Data of the Actuator: main power: 220-230 V
• motor power supply: 230 VDC
• power supply for external lighting: 230V-60W
• accessory power supply: 24 V DC / 350 mA
• drive force: 3000N
• opening time to 90 ° without slowing area and maximum speed: 7 to 19 seconds
• Number of storable remote control devices: max. 128 channels
• working temperature: -20 ° C to +60 ° C
• security class: IP 54
• Somfy Ixengo Js Package Contains: 2 x Actuator Ixengo JS 230V

Technical suitability can vary by gate size, weight, geometry, duty cycle, accessories and site conditions. Confirm the exact configuration before installation.

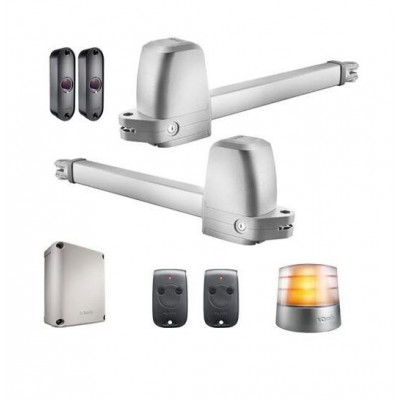

SOMFY IXENGO 3M 250KG Kit Includes

• 2 x SOMFY IXENGO JS 230V Swing Gate Operators
• 1 x SOMFY Control Unit
• 2 x SOMFY Remote Controls
• 1 x SOMFY Pair of Outdoor Photocells
• 1 x Radio Receiver (where not integrated)
• 1 x SOMFY Flashing / Blinker Light
• 1 x Fixing Bracket Set
• 1 x Push Button

Applications

• Residential swing gates
• Villa gate automation
• Commercial swing gates
• Residential compounds
• Office and building entrances
• Automatic driveway gates
• Parking entrance automation
• Automatic swing gate systems

Why Choose SOMFY IXENGO 3M 250KG UAE?

SOMFY IXENGO 3M 250KG offers a model-specific automation option for UAE projects. Its available technical specifications, operating characteristics and compatible accessories help installers and property owners select a solution that matches the actual gate or garage-door requirement. Correct sizing, professional installation and suitable safety devices support reliable operation and long service life.

Installation & Compatibility

Professional installation is recommended. Confirm the power supply, motor capacity, control-board configuration, gate or door mechanics and all required safety devices before commissioning. Compatibility with remote controls, photocells, loop detectors, WiFi/GSM controllers, keypads and other access-control accessories depends on the selected model and control system.

Frequently Asked Questions

What are the main specifications of SOMFY IXENGO 3M 250KG?

The key model-specific specifications available in the original product data are listed above, including capacity, voltage, power, speed, control and safety information where provided.

What is included with SOMFY IXENGO 3M 250KG?

The kit includes: 2 x SOMFY IXENGO JS 230V Swing Gate Operators; 1 x SOMFY Control Unit; 2 x SOMFY Remote Controls; 1 x SOMFY Pair of Outdoor Photocells; 1 x Radio Receiver (where not integrated); 1 x SOMFY Flashing / Blinker Light; 1 x Fixing Bracket Set; 1 x Push Button.

Is SOMFY IXENGO 3M 250KG suitable for residential use?

It may be suitable when the gate or door weight, dimensions, operating frequency and installation conditions are within the manufacturer's stated limits.

Can SOMFY IXENGO 3M 250KG be used for commercial applications?

Commercial suitability depends on the rated capacity, duty cycle and actual site conditions. High-use entrances should be assessed before motor selection.

Can remote, WiFi, GSM or access-control systems be added?

Compatible automation accessories can often be integrated depending on the control board, receiver and system configuration.
