Sommer Twist 200 EL Swing Gate Motor in UAE

Sommer Twist 200 EL Swing Gate Motor UAE

Automatic Swing Gate Opener for Residential & Commercial Gates

Sommer Twist 200 EL Swing Gate Motor UAE is a premium automatic swing gate opener designed for reliable residential, commercial, and professional automation projects across the UAE.

The Sommer Twist 200 EL is engineered to provide smooth, controlled, and dependable daily operation for modern swing gate automation systems. It is rated for applications up to 300 kg, and a duty rating of ED 15% S3.

This Sommer automation system uses 250 × 175 × 75 mm control technology, helping deliver stable motor control, accurate movement, and reliable performance for correctly sized gates or doors.

Key operational and safety characteristics include IP 44 protection. These technologies support controlled movement and dependable automation when the operator is installed and programmed according to the manufacturer's requirements.

Suitable applications include villas, residential compounds, commercial properties, office entrances, parking areas, and professional swing gate automation systems. Correct motor selection should always consider the actual gate or door weight, dimensions, mechanical condition, operating frequency, wind load, and site requirements.

Supply, professional installation, maintenance, site visit, motor recommendation, technical support, and after-sales support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Sommer Twist 200 EL Features

• two twist 200 E swing gate operator (can be used universally for DIN left and DIN right)
• Post and gate leaf fitting
• Designed for professional swing gate motor applications
• Model-specific SOMMER operator: Sommer Twist 200 EL
• Supports integration with compatible photocells, remote controls and access-control accessories
• Manual release capability for emergency or power-failure operation
• Suitable for professional residential and commercial automation projects

Sommer Twist 200 EL Technical Specifications

• Control unit DST-A 24 in housing (IP65), Dimensions: 250 × 175 × 75 mm
• Weight: 11.7504
• EAN: 4015862918321
• Goods Number: 8479 89 97
• Radio Frequency: 868,950 MHz SOMloq2
• Radio Memory Positions: 40
• Somloq compatible: nein
• SOMloq2 compatible: ja
• Protection Rating: IP 44
• Protection Class: I
• Standby: 2,90 W
• Minimum Operating Temperature: - 30 °C
• Maximum Operating Temperature: 70 °C
• max. pulling force: 2000 N
• Rated pulling force: 660 N
• Duty Cycle: ED 15% S3
• Maximum Gate Weight: 300 kg
• max. gate opening angle: 120 °
• max. gate inclination: 10,0 %

Technical suitability can vary by gate size, weight, geometry, duty cycle, accessories and site conditions. Confirm the exact configuration before installation.

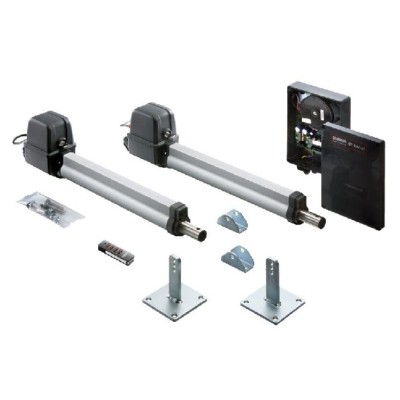

Sommer Twist 200 EL Kit Includes

• 2 x twist 200 E swing gate operator
• 1 x Control unit in housing
• 1 x Post and hinged double door fittings
• 1 x Radio receiver SOMup4 FM 868.95 MHz
• 2 x 4-command handheld transmitter Pearl Vibe
• 1 x Blinker light
• 2 x Fixing Bracket

Applications

• Residential swing gates
• Villa gate automation
• Commercial swing gates
• Residential compounds
• Office and building entrances
• Automatic driveway gates
• Parking entrance automation
• Automatic swing gate systems

Why Choose Sommer Twist 200 EL UAE?

Sommer Twist 200 EL offers a model-specific automation option for UAE projects. Its available technical specifications, operating characteristics and compatible accessories help installers and property owners select a solution that matches the actual gate or garage-door requirement. Correct sizing, professional installation and suitable safety devices support reliable operation and long service life.

Installation & Compatibility

Professional installation is recommended. Confirm the power supply, motor capacity, control-board configuration, gate or door mechanics and all required safety devices before commissioning. Compatibility with remote controls, photocells, loop detectors, WiFi/GSM controllers, keypads and other access-control accessories depends on the selected model and control system.

Frequently Asked Questions

What are the main specifications of Sommer Twist 200 EL?

The key model-specific specifications available in the original product data are listed above, including capacity, voltage, power, speed, control and safety information where provided.

What is included with Sommer Twist 200 EL?

The kit includes: 2 x twist 200 E swing gate operator; 1 x Control unit in housing; 1 x Post and hinged double door fittings; 1 x Radio receiver SOMup4 FM 868.95 MHz; 2 x 4-command handheld transmitter Pearl Vibe; 1 x Blinker light; 2 x Fixing Bracket.

Is Sommer Twist 200 EL suitable for residential use?

It may be suitable when the gate or door weight, dimensions, operating frequency and installation conditions are within the manufacturer's stated limits.

Can Sommer Twist 200 EL be used for commercial applications?

Commercial suitability depends on the rated capacity, duty cycle and actual site conditions. High-use entrances should be assessed before motor selection.

Can remote, WiFi, GSM or access-control systems be added?

Compatible automation accessories can often be integrated depending on the control board, receiver and system configuration.
