Sommer Twist XL Swing Gate Motor in UAE

Sommer Twist XL Swing Gate Motor UAE

Automatic Swing Gate Opener for Residential & Commercial Gates

Sommer Twist XL Swing Gate Motor UAE is a premium automatic swing gate opener designed for reliable residential, commercial, and professional automation projects across the UAE.

The Sommer Twist XL is engineered to provide smooth, controlled, and dependable daily operation for modern swing gate automation systems. It is rated for applications up to max. 1100 kg.

This Sommer automation system uses AC 220...240 V, 50/60 Hz; motor voltage DC 24 V motor system, DTA-1, 1- and 2-leaf gate installation control technology, helping deliver stable motor control, accurate movement, and reliable performance for correctly sized gates or doors.

Suitable applications include villas, residential compounds, commercial properties, office entrances, parking areas, and professional swing gate automation systems. Correct motor selection should always consider the actual gate or door weight, dimensions, mechanical condition, operating frequency, wind load, and site requirements.

Supply, professional installation, maintenance, site visit, motor recommendation, technical support, and after-sales support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Sommer Twist XL Features

• also applicable for closed gate fillings
• operator can be engaged and disengaged in any position (e.g. in case of power failure)
• connections for safety facilities such as warning light and 2-/4-wire light barrier (photo cell), as well as for an external consumer (DC 24 V), floating relay output
• the operator is very reliable due to the patented SOMMER gear saving brake system, even with extreme forces of up to 3 tonnes applied, e.g. caused by wind load or vandalism
• gate inclination 0 % (up to 10% in combination with special brackets)
• gate filling max. 100 % filled (dependent of gate width and height)

Sommer Twist XL Technical Specifications

• gate weight per leaf: max. 1100 kg
• gate width per leaf: max. 7000 mm
• operator principle: electromechanical swing gate operator with 8-gear stainless-steel threaded spindle and self-locking high-performance worm gear
• push rod: made of polished stainless steel, non-corrosive, high buckling resistance
• exterior tube: anodised aluminium, extremely good protection, even in extreme climatic conditions
• bearing: maintenance-free slide bearing with excellent dry-running characteristics
• housing: made of special, UV-resistant, non-ageing special synthetic material. It is more resistant to brittle fracture compared to the same housing of an aluminium alloy
• motor: high-performance DC motor with multiple downgearing and extra-reinforced gear steps, extremely reliable
• motor protection: via microprocessor, with power monitoring
• motor control board: DTA-1, 1- and 2-leaf gate installation
• power supply: AC 220...240 V, 50/60 Hz; motor voltage DC 24 V
• opening time: approx. 10–40 sec., depending on fixing point (see installation dimensions A+B)
• opening angle: max. 121°
• accident prevention: through electronic regulated force measurement
• limit stop: limit switch with Reed contact
• emergency release: fitted to the operator; secured with a lock, easy to use
• LED-monitored function: mains / OPEN / CLOSE / safety, warning light, electric lock
• soft start / soft stop: regulated soft run in ramp form, without power loss
• automatic close function: can be set via DIP switch
• dead man function: yes, can be set via TorMinal
• pedestrian door function: yes
• pulse mode: OPEN / STOP / CLOSE / STOP / ..., defined OPEN / CLOSE adjustable
• close sequence: self-learning
• number of radio channels: 2
• operating mode: S3 40 %
• Protection Class: operator: IP 44 / control unit: IP 65
• temperature range: operator/control unit: –20°C / +70°C

Technical suitability can vary by gate size, weight, geometry, duty cycle, accessories and site conditions. Confirm the exact configuration before installation.

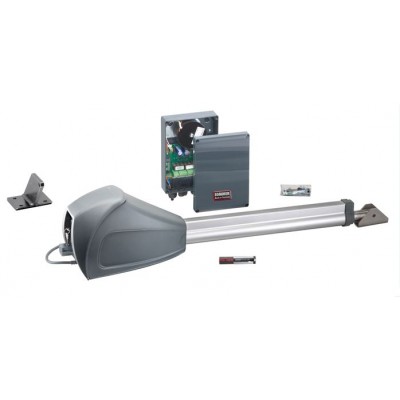

Sommer Twist XL Kit Includes

• 2 x Twist XL operator
• 1 x DTA-1 control board with built-in receiver
• 1 x 4 channel Pearl remote control or 2 channel Pearl Twin remote control
• 1 x pair of photocells 7020V000 Fastening elements 24 months warranty card Instruction

Applications

• Residential swing gates
• Villa gate automation
• Commercial swing gates
• Residential compounds
• Office and building entrances
• Automatic driveway gates
• Parking entrance automation
• Automatic swing gate systems

Why Choose Sommer Twist XL UAE?

Sommer Twist XL offers a model-specific automation option for UAE projects. Its available technical specifications, operating characteristics and compatible accessories help installers and property owners select a solution that matches the actual gate or garage-door requirement. Correct sizing, professional installation and suitable safety devices support reliable operation and long service life.

Installation & Compatibility

Professional installation is recommended. Confirm the power supply, motor capacity, control-board configuration, gate or door mechanics and all required safety devices before commissioning. Compatibility with remote controls, photocells, loop detectors, WiFi/GSM controllers, keypads and other access-control accessories depends on the selected model and control system.

Frequently Asked Questions

What are the main specifications of Sommer Twist XL?

The key model-specific specifications available in the original product data are listed above, including capacity, voltage, power, speed, control and safety information where provided.

What is included with Sommer Twist XL?

The kit includes: 2 x Twist XL operator; 1 x DTA-1 control board with built-in receiver; 1 x 4 channel Pearl remote control or 2 channel Pearl Twin remote control; 1 x pair of photocells 7020V000 Fastening elements 24 months warranty card Instruction.

Is Sommer Twist XL suitable for residential use?

It may be suitable when the gate or door weight, dimensions, operating frequency and installation conditions are within the manufacturer's stated limits.

Can Sommer Twist XL be used for commercial applications?

Commercial suitability depends on the rated capacity, duty cycle and actual site conditions. High-use entrances should be assessed before motor selection.

Can remote, WiFi, GSM or access-control systems be added?

Compatible automation accessories can often be integrated depending on the control board, receiver and system configuration.
