V2 CALYPSO 400

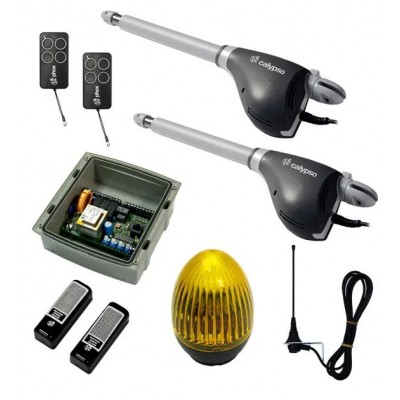

V2 CALYPSO Swing Gate Motor kit in Dubai, Sharjah, Ajman, Abu Dhabi UAE.

• CALYPSO 230V and 24V electromechanical swing motor leaves up to 3 m in length.
• CALYPSO 400 : 22G001-230V - for leaves up to 2.5 m and 400 Kg.
• CALYPSO STRENGTHS:
• Single version for both right and left leaves
• Practical release system
• 400 version for leaves up to 2.5 m.

Technical Features:

• Maximum leaf length : 2,5 m.
• Maximum leaf weight : 400 kg.
• Power supply vhz : V / Hz.
• Idling current : 0,8 A.
• Full load current : 1,2 A.
• Maximum power : 250 W.
• Opening time 0÷ 90° : 22 s.
• Maximum travel : 400 mm.
• Operating speed : 0,016 m/s.
• Maximum thrust : 2300 N.
• Duty cycle : 30 %.
• Weight : 6,5 Kg.
