BENINCA BILL30M Swing Gate Motor in UAE

BENINCA BILL30M Swing Gate Motor UAE

Automatic Swing Gate Opener for Residential & Commercial Gates

BENINCA BILL30M Swing Gate Motor UAE is a premium automatic swing gate opener designed for reliable residential, commercial, and professional automation projects across the UAE.

The BENINCA BILL30M is engineered to provide smooth, controlled, and dependable daily operation for modern swing gate automation systems. It is and a duty rating of 30%.

This Beninca automation system uses 230 Vac (50–60 Hz) motor system, No control technology, helping deliver stable motor control, accurate movement, and reliable performance for correctly sized gates or doors.

Suitable applications include villas, residential compounds, commercial properties, office entrances, parking areas, and professional swing gate automation systems. Correct motor selection should always consider the actual gate or door weight, dimensions, mechanical condition, operating frequency, wind load, and site requirements.

Supply, professional installation, maintenance, site visit, motor recommendation, technical support, and after-sales support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

BENINCA BILL30M Features

• Swing gate opener for leaves up to 2.5 meters
• 230 Vac irreversible electromechanical motor
• Compact design for decorative gates
• Stainless steel stem with scraper-ring protection
• Easy manual release from above
• Available in right-hand and left-hand versions
• High thrust for stable movement
• Made in Italy

BENINCA BILL30M Technical Specifications

• Model: BILL30M
• Brand: BENINCA
• Power Supply: 230 Vac (50–60 Hz)
• Motor Supply: 230 Vac
• Maximum Thrust: 2800 N
• Opening Time: 16 seconds
• Standard Stroke: 300 mm
• Maximum Stroke: 320 mm
• Duty Cycle: 30%
• Protection Level: IP54
• Built-in Control Unit: No
• Operating Temperature: -20°C to +50°C
• Maximum Leaf Length: 2.5 m
• Motor Weight: 6.1 KG

Technical suitability can vary by gate size, weight, geometry, duty cycle, accessories and site conditions. Confirm the exact configuration before installation.

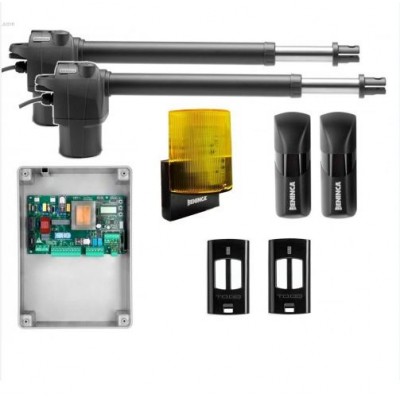

BENINCA BILL30M Kit Includes

• 2 x BILL30M 230 Vac Swing Gate Motors
• 1 x HEADY Control Unit with Integrated Receiver
• 1 x PUPILLA.T Pair of Photocells
• 1 x LAMPY Flashing Light with Antenna
• 2 x TO.GO2VA 433.92 MHz Remote Controls
• 2 x Fixing Brackets
• 1 x Exit Push Button
• 2 x Manual Release Keys

Applications

• Residential swing gates
• Villa gate automation
• Commercial swing gates
• Residential compounds
• Office and building entrances
• Automatic driveway gates
• Parking entrance automation
• Automatic swing gate systems

Why Choose BENINCA BILL30M UAE?

BENINCA BILL30M offers a model-specific automation option for UAE projects. Its available technical specifications, operating characteristics and compatible accessories help installers and property owners select a solution that matches the actual gate or garage-door requirement. Correct sizing, professional installation and suitable safety devices support reliable operation and long service life.

Installation & Compatibility

Professional installation is recommended. Confirm the power supply, motor capacity, control-board configuration, gate or door mechanics and all required safety devices before commissioning. Compatibility with remote controls, photocells, loop detectors, WiFi/GSM controllers, keypads and other access-control accessories depends on the selected model and control system.

Frequently Asked Questions

What are the main specifications of BENINCA BILL30M?

The key model-specific specifications available in the original product data are listed above, including capacity, voltage, power, speed, control and safety information where provided.

What is included with BENINCA BILL30M?

The kit includes: 2 x BILL30M 230 Vac Swing Gate Motors; 1 x HEADY Control Unit with Integrated Receiver; 1 x PUPILLA.T Pair of Photocells; 1 x LAMPY Flashing Light with Antenna; 2 x TO.GO2VA 433.92 MHz Remote Controls; 2 x Fixing Brackets; 1 x Exit Push Button; 2 x Manual Release Keys.

Is BENINCA BILL30M suitable for residential use?

It may be suitable when the gate or door weight, dimensions, operating frequency and installation conditions are within the manufacturer's stated limits.

Can BENINCA BILL30M be used for commercial applications?

Commercial suitability depends on the rated capacity, duty cycle and actual site conditions. High-use entrances should be assessed before motor selection.

Can remote, WiFi, GSM or access-control systems be added?

Compatible automation accessories can often be integrated depending on the control board, receiver and system configuration.
