CAME ATI 3000 Swing Gate Motor in UAE
Product Code: CAME ATI 3000
Price 4,000.00 AEDIn Stock
Installation Options:
CAME Swing Gate Motor Supplier in UAE
CAME ATI 3000 Swing Gate Motor kit in Dubai, Sharjah, Ajman, Abu Dhabi UAE.
- CAME ATI 3000 Irreversible 230 V gearmotor with opening
- limit microswitch for swing gates with leaf up to 3 m and weighing 400 kg.
Main Features:
- Irreversible gearmotor.
- Motor and encoder management with three-wire cable in 24 V DC versions.
- Obstacle amperometric detection.
- Arrangement for operation in the event of a blackout in the 24 V DC versions.
Technical Data:
- Degree of protection (IP) : 44.
- Motor Power (V) : 230AC 50/60Hz.
- Absorption (A) : 1.2.
- Power (W) :260.
- Maneuver time at 90° (s) : 19 ÷ 25.
- Cycles/Hour : 24.
- Thrust (N) : 400 ÷ 4000.
- Operating temperature (°C) : -20 ÷ +55.
- Engine thermal protection (°C) : 150.

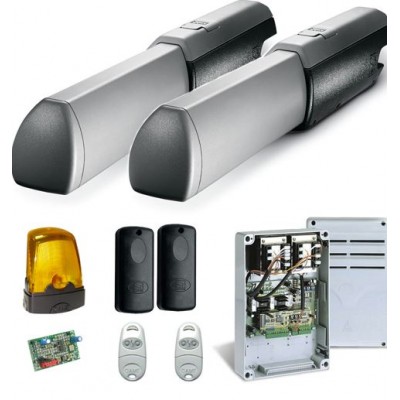

CAME ATI A3000 Kit Includes:
- 2 x CAME ATI A3000 Irreversible 230 V gearmotor with opening limit microswitch.
- 1 x Multifunction control panel for gates with two swing leaves.
- 2 x Came top 432EE Remote Control.
- 1 x CAME KIARO Flashing light.
- 1 x CAME DELTA DIR Photocell Sensors.
- 2 x Wall Fixing bracket.
- 1 x Push button.
