FAAC 415 230V Swing Gate Motor in UAE

FAAC 415 230V Swing Gate Motor UAE

Automatic Swing Gate Opener for Residential & Commercial Gates

FAAC 415 230V Swing Gate Motor UAE is a premium automatic swing gate opener designed for reliable residential, commercial, and professional automation projects across the UAE.

The FAAC 415 230V is engineered to provide smooth, controlled, and dependable daily operation for modern swing gate automation systems. It is with an operating speed of 16 mm/s (*).

Suitable applications include villas, residential compounds, commercial properties, office entrances, parking areas, and professional swing gate automation systems. Correct motor selection should always consider the actual gate or door weight, dimensions, mechanical condition, operating frequency, wind load, and site requirements.

Supply, professional installation, maintenance, site visit, motor recommendation, technical support, and after-sales support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

FAAC 415 230V Features

• FAAC 415 Swing Gate Motor in Dubai, Sharjah, Ajman, Abu Dhabi UAE
• FAAC 415 230V Electromechanical operator
• Off axis” thrust operator
• Designed for professional swing gate motor applications
• Model-specific FAAC operator: FAAC 415 230V
• Supports integration with compatible photocells, remote controls and access-control accessories
• Manual release capability for emergency or power-failure operation
• Suitable for professional residential and commercial automation projects

FAAC 415 230V Technical Specifications

• Dimensions and technical specifications: Power supply voltage : 220-240V~ 50/60 Hz
• Electric motor: Asynchronous single phase
• Max. power: 300 W
• Max expressed force: 3000 N (*)
• Rod max speed: 16 mm/s (*)
• Rod travel: 300 mm (400 mm without mechanical stops)
• Max. leaf opening angle: 110°
• Operating ambient temperature: -20°C ÷ + 55°C
• Thermal protection: 140°C
• Protection Class: IP54
• Weight: 7.8 Kg
• Use frequency: S3 – 30%
• Max. leaf width: 2.5 m
• Mounting brackets: Rear attachment to be welded/screwed
• Dimensions (LxDxH): 836 x 101 x 147 mm

Technical suitability can vary by gate size, weight, geometry, duty cycle, accessories and site conditions. Confirm the exact configuration before installation.

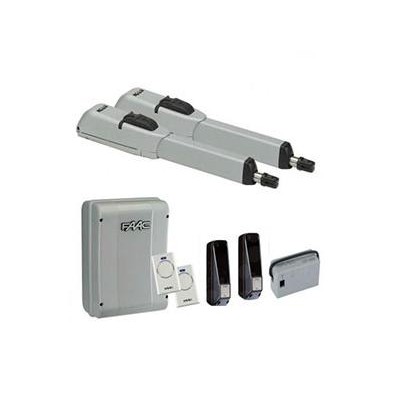

FAAC 415 230V Kit Includes

• 1 x XLED flashing light
• 1 x Lock with key
• 1 x E045S control unit
• 1 x Enclosure mod. E for electronic control units
• 1 x XF 433 MHz receiver
• 1 x Pair of photocells XP 20 BD
• 1 x 2 channels transmitter XT2 433 SLH LR
• 1 x Push button

Applications

• Residential swing gates
• Villa gate automation
• Commercial swing gates
• Residential compounds
• Office and building entrances
• Automatic driveway gates
• Parking entrance automation
• Automatic swing gate systems

Why Choose FAAC 415 230V UAE?

FAAC 415 230V offers a model-specific automation option for UAE projects. Its available technical specifications, operating characteristics and compatible accessories help installers and property owners select a solution that matches the actual gate or garage-door requirement. Correct sizing, professional installation and suitable safety devices support reliable operation and long service life.

Installation & Compatibility

Professional installation is recommended. Confirm the power supply, motor capacity, control-board configuration, gate or door mechanics and all required safety devices before commissioning. Compatibility with remote controls, photocells, loop detectors, WiFi/GSM controllers, keypads and other access-control accessories depends on the selected model and control system.

Frequently Asked Questions

What are the main specifications of FAAC 415 230V?

The key model-specific specifications available in the original product data are listed above, including capacity, voltage, power, speed, control and safety information where provided.

What is included with FAAC 415 230V?

The kit includes: 1 x XLED flashing light; 1 x Lock with key; 1 x E045S control unit; 1 x Enclosure mod. E for electronic control units; 1 x XF 433 MHz receiver; 1 x Pair of photocells XP 20 BD; 1 x 2 channels transmitter XT2 433 SLH LR; 1 x Push button.

Is FAAC 415 230V suitable for residential use?

It may be suitable when the gate or door weight, dimensions, operating frequency and installation conditions are within the manufacturer's stated limits.

Can FAAC 415 230V be used for commercial applications?

Commercial suitability depends on the rated capacity, duty cycle and actual site conditions. High-use entrances should be assessed before motor selection.

Can remote, WiFi, GSM or access-control systems be added?

Compatible automation accessories can often be integrated depending on the control board, receiver and system configuration.
