Swing Gate Motor Supplier in UAE
NICE Toona 4 TO4024 Swing Gate Motor in UAE
TO4024
Toona 4 For swing gates with leaves up to 3 m
Ideal for residential applications.
Electromechanical gear motor, surface mounted.
Also available in 24 Vdc version, with magnetic encoder,
Internal moving parts completely in steel, light alloys and technopolymers.
Silent: patented layout of internal parts and lead nut in bronze.
Generously sized and practical connection compartment:
rapid and easy access from above to internal parts located in the upper section of the motor.
Simple installation and maintenance: with built-in capacitor,
Recommended control units: MC800, Moonclever MC824H for TO4024.
24 Vdc version with magnetic encoder.
Perfect for intensive use, compatible with the control unit Moonclever MC824H:
TECHNICAL SPECIFICATIONS
Code TO44024
ELECTRICAL DATA
Power supply (Vac 50 Hz)* - 230
Power supply (Vdc) 24 -
Absorption (A) 5
Power (W) 120
PERFORMANCE DATA
Speed (m/s) 0,016
Force (N) 1800
Work cycle (cycles/hour) 95
DIMENSIONAL AND GENERAL DATA
Protection level (IP) 44
Working temp. (°C Min/Max) -20 ÷ +50
Dimensions (mm) 820x115x105 h
Weight (kg) 6

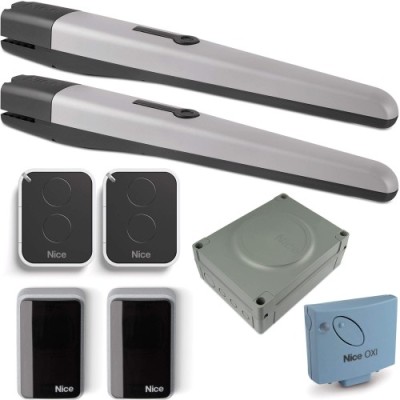

NICE TOONA 4 TO4024 Kit Includes:
2 x Nice Toona TO4024 Swing Gate Motor.
1x Nice MC800 for 2 electric drives 230V.
1 x Nice OXI Receiver 433.92 MHz.
2 x Nice Flo2RE remote control.
1 x Nice Flashing Light.
2 x Fixing Bracket.
1 x Push Button.
