NICE TOONA 5 TO5024

NICE Toona 5 TO5024 Swing Gate Motor in UAE

TO5024 For swing gates with leaves up to 5 m
Ideal for residential and industrial applications.
Electromechanical gear motor, surface mounted.
Also available in 24 Vdc version, with magnetic encoder.
Internal moving parts completely in steel, light alloys and technopolymers.
Generously sized and practical connection compartment:
rapid and easy access from above to internal parts located in the upper section of the motor.
Simple installation and maintenance: with built-in capacitor.
Recommended control units: MC800, Moonclever MC824H for TO5024 and TO5024I.
24 Vdc version with magnetic encoder. Perfect for intensive use,
Recommended with the control unit Moonclever MC824H:
simple programming, by means of a single key
automatic memorization of limit switches on opening
and closing with self-learning function
automatic fault diagnostics
programming of pause time
pedestrian pass door
deceleration on opening and closing
obstacle detection with dual technology
operation in event of power failure by means of optional rechargeable batteries
provision for connection of latest generation resistive sensitive edges.
TECHNICAL SPECIFICATIONS
Code TO5016
ELECTRICAL DATA
Power supply 24V
Absorption (A) 5
Power (W) 120
PERFORMANCE DATA
Speed (m/s) 0,016
Force (N) 1800
Work cycle (cycles/hour) 95
DIMENSIONAL AND GENERAL DATA
Protection level (IP) 44
Working temp. (°C Min/Max) -20 ÷ +50
Dimensions (mm) 965x115x105 h
Weight (kg) 7

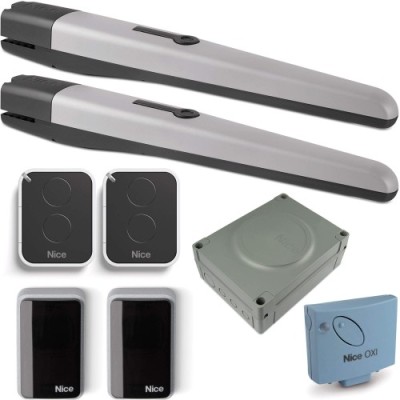

NICE TOONA 5 TO5024 Kit Includes:
2 x Nice Toona 5 TO5024 Swing Gate Motor.
1x  Nice MC800 for 2 electric drives 230V.
1 x Nice OXI Receiver 433.92 MHz.
2 x Nice Flo2RE remote control.
1 x EPM Pair of Blue bus Photocells.
1 x Nice Flashing Light.
2 x Fixing Bracket.
1 x Push  Button.
