VDS PM 400

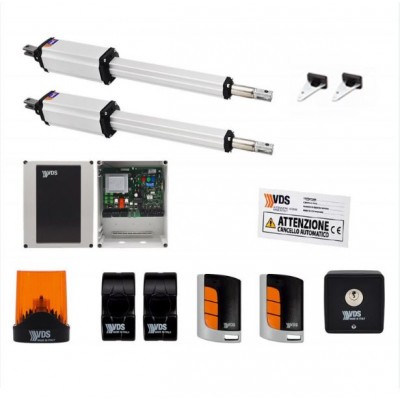

VDS PM 400 Swing Gate Motor up to 2.5m in Dubai, Sharjah, Ajman, Abu Dhabi UAE.

• Leaf length from 1.80 mt up to 3.50 mt
• Reversible
• Sturdy aluminum structure
• Rod stroke mm 300 – mm 400 – mm 600
• Stainless steel rod with dust scraper
• Very quiet operation
• Thermal cut out 140°
• Manual release with customized key
• Lithium grease lubrications of mechanical parts against corrosion, oxidation and rust
• 120° opening
• Quick installation with multi-position brackets and cover for brackets in technopolimers
• Anti-squashing system (en 12453)
• Slowing down function (en 12453)
• Power supply 230 vac.
• Performance requirements:
• Operating cycle semi-intensivo
• Frequency of use 50%
• Opening 15 – 25 – 30 sec.
• Thrust 1500N

Technical features:

• POWER SUPPLY : 230 VAC
• LEAF WEIGHT : 250 KG
• LEAF LENGHT : 3,50 M
• ENGINE RPM : 800 RPM
• AVERAGE ABSORPTION : 1 A
• ABSORBED POWER : 250 W
• LIMIT SWITCH : NO
• CONDENSER : 12,5 UF
• OPERATOR WEIGHT : 7,5 KG
• NOISE LEVEL : < 30 DBA
• ENVIROMENTAL CONDITIONS : -20/+55° C
• DEGREE OF PROTECTION : IP55
